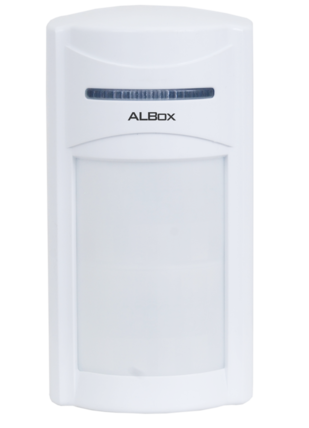

Outdoor Dual PIR Detector (PIR2110-X)

Brand: ALBox

Product Code: PIR2110-X

Features

  • Provide with waterproof to be suitable for outdoor usage
  • Dual sensors Pet immunity Detector< ...
    (read full description below)

Features

  • Provide with waterproof to be suitable for outdoor usage
  • Dual sensors Pet immunity Detector
  • Adopt microprocessor
  • Special filter lens, white light immunity 10000 Lux
  • Bug guard
  • Wide-angle lens and curtain lens optional for a different locale
  • Collect signals by dual sensor to false alarm prevention
  • Led On/Off optional, pulse count optional
  • Temperature auto-compensation to adapt environment change
  • Alarm output N.C/ N.O optional to adopt different alarm system
  • Pet (<20kg) immunity
  • Model: PIR 2110-X
  • Detection Type: Quad (Four Element Dual PIR)
  • Coverage/ Range: 12m ~110°
  • Supply Voltage: 9.6-16V
  • Active Current: 28mA
  • Standby Current: 20mA
  • Tamper Switch: Two switches N.C DC 28V 0.1A
  • Warm-up period: 60s 5s
  • LED indicator: All LED’s are ON during Alarm
  • Working Temperature: From -10oC to +50oC
  • Alarm Output: (NO/ NC) Optional
  • RF Immunity: 10V/ m plus 80% AM from 80MHz to 2 Ghz
  • Wall/ Ceiling Mount: Wall/ Ceiling
  • Dimensions (mm): 157 x 75 x 42
